ConnectionWafer type with threaded holes, PN16 / PN40
Size rangeDN15 - DN100
Pressure ratingPN40/PN16
Face to faceManufacturer standard
MaterialStainless steel 316 / PTFE, carbon steel / PTFE
Valve topISO5211
TightnessANSI/FCI 70-2 - Class VI
ISO 5208 / EN 12266-1 - Rate A
API 598 - Bubble-tight

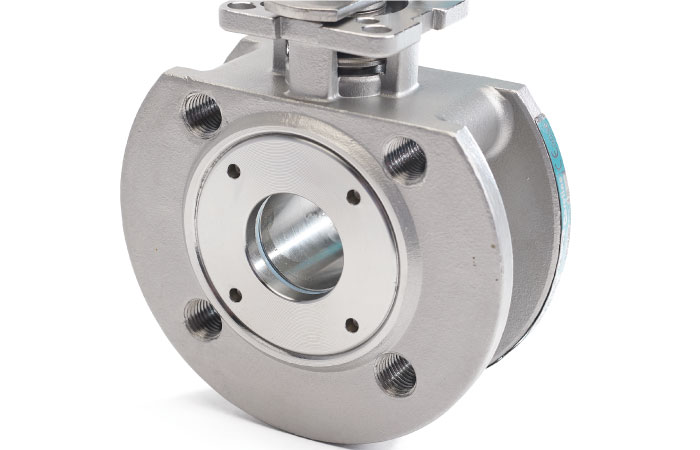

Fig.170 wafer ball valve features a compact wafer-type body with threaded holes, designed for installation between PN16 or PN40 flanges.
The space-saving construction allows direct bolting into the pipeline without nuts, making it ideal for tight installation spaces.
The valve provides reliable shut-off performance and is suitable for a wide range of industrial applications.
Wax casting with excellent surface finish.
Full bore for better Kv value.
Anti-static devices for ball - stem - body.
Blow-out proof stem.
Pressure relief hole in ball slot.

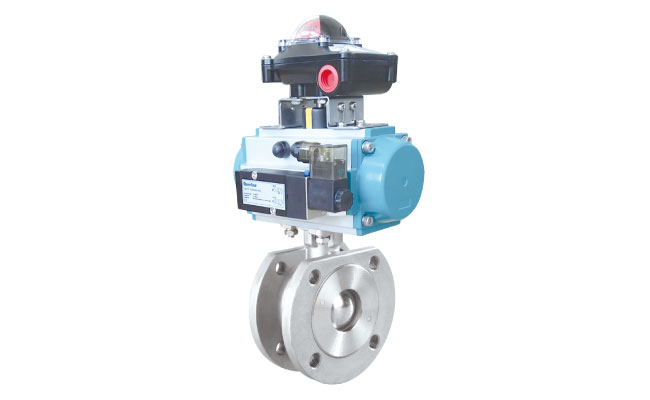

ISO5211 direct mounting pad for easy automation.
