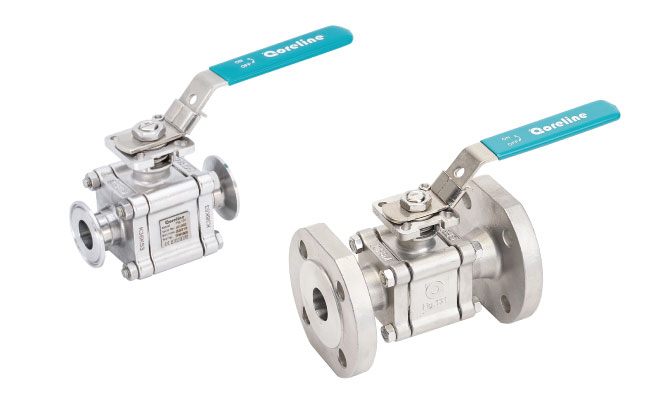

ConnectionThreaded, Butt welded, Socket welded, Flanged, Tri-clamp
Size range1/2"-4" or DN15-DN100
Reduced bore, Full bore
Pressure rating≤1" FB: PN138 (2000psi)
1 1/4" - 2" FB: PN103(1500psi)
≥2 1/2" FB: PN68(1000psi)
MaterialsSS316 body / ball / stem; WCB body / SS316 ball & stem
SealingPTFE + 25% C
Valve topISO 5211 direct mount top

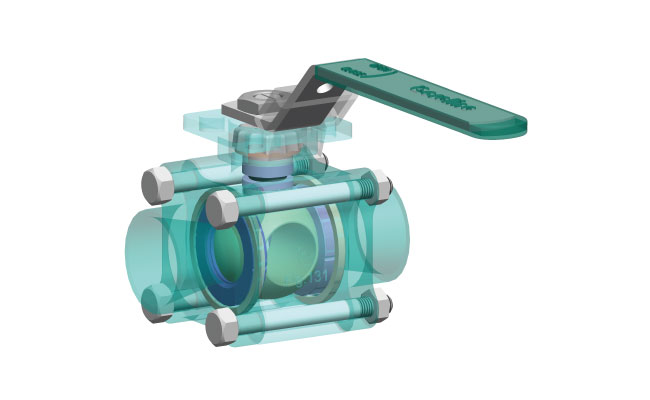

Fig.131 is a three-piece heavy duty ball valve designed for reliable performance in demanding industrial applications.
The robust three-piece construction allows the end caps to be welded directly to the pipeline without removing the valve body, ensuring efficient installation while protecting internal sealing components.

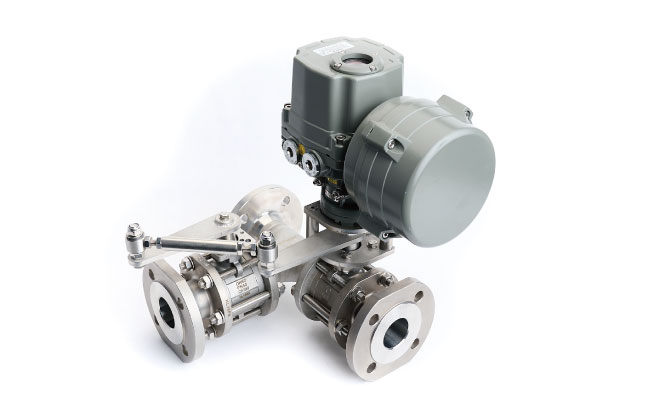

With its durable design, wide connection options, and ISO 5211 direct mounting flange, Fig.131 is an ideal solution for applications requiring strength, hygienic service, flexibility, regulating capability, and ease of automation.
Customized V-port ball designs are available on request for regulating service.
1. Groove on the stem show the direction of ball.
2. Stem is square which is good for automation, having four driving points to absorb strength.

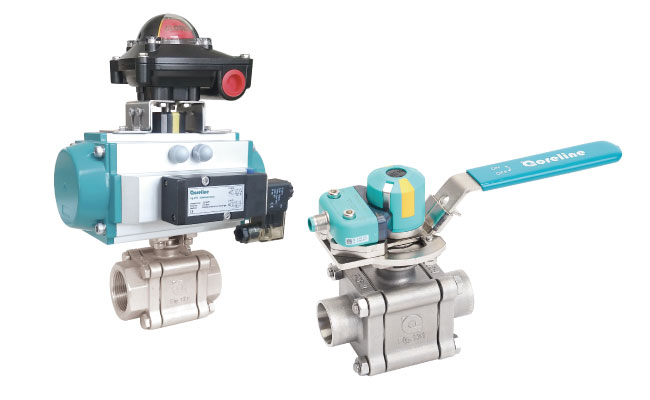

3. Top flange according to ISO5211, together with square stem, makes it suitable for direct mounting of actuators, without using bracket or coupling.
4. Lock cap for nut, ensure life loaded sealing.
5. Fully encapsulated body sealing provide safe sealing and directly welding in line without disassembly.
6. Anti-static device for ball-stem-body.
7. Precisely machined and mirror polished ball surface for bubble tight shutoff with low operating torque.
8. Relief hole in stem slot of ball to balance the pressure in the body cavity.
9. CF8M ball valves with welding ends CF3M material as standard, which reduces inter-granular corrosion by welding.
1. Groove on the stem show the direction of ball.
2. Stem is square which is good for automation, having four driving points to absorb strength.
3. Top flange according to ISO5211, together with square stem, makes it suitable for direct mounting of actuators, without using bracket or coupling.
4. Lock cap for nut, ensure life loaded sealing.
5. Fully encapsulated body sealing provide safe sealing and directly welding in line without disassembly.
6. SS316 seat retainer: it can greatly reduce the valve torque by reducing the sealing contact area. Besides, it can provide the required pressure of sealing so directly welding in line without disassembly is ensured.
7. Anti-static device for ball-stem-body.
8. Precisely machined and mirror polished ball surface for bubble tight shutoff with low operating torque.
9. Relief hole in stem slot of ball to balance the pressure in the body cavity.
10. CF8M ball valves with welding ends CF3M material as standard, which reduces inter-granular corrosion by welding.
DN8F-DN50F(DN15R-DN65R)
1) CF3M for CF8M ball valves with weld ends connection.
2) Various seat/packing material for optional. Consult Coreline if required.
DN50F-DN100F(DN65R-DN100R)
1) CF3M for CF8M ball valves with weld ends connection.
2) Various seat/packing material for optional. Consult Coreline if required.
DN8F-DN50F / DN15R-DN65R
DN65F-DN100F / DN65R-DN100R
*For dimensional information on Flange ends and Sanitary type, please contact our Coreline team at any time for further inquiries.
