ConnectionThreaded ends
Port3-way; L port, T port
Size range1/2"-2”
Pressure ratingPN63 (1000psi)
Top flangeISO5211
MaterialStainless steel 316/PTFE
TightnessANSI/FCI 70-2 - Class VI
ISO 5208 / EN 12266-1 - Rate A
API 598 - Bubble-tight

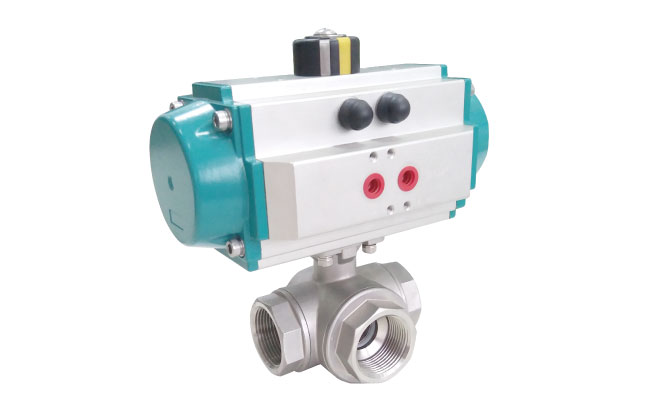

Fig.161 is a 3-way threaded ball valve designed for flow diverting or mixing applications in industrial piping systems.
The valve allows flexible flow control between multiple ports and provides reliable shut-off performance.
• 4 seats design which allows input flow in all ends without the occurrence of bypass (leakage) behind the ball.
• Traceability: heat numbers on main parts of each valve. Material certificate EN10204-3.1 can be delivered on request.
* Other seat materials are available on request.
