Fig.150

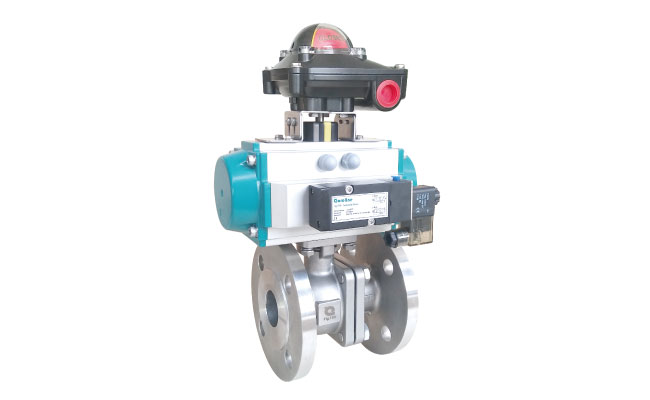

两片式不锈钢法兰球阀
基本信息

ConnectionPN16/40 - DIN EN1092-1; ANSI150 - ASME B16.5

Size rangeDN15-DN200

Pressure ratingPN16/PN40; ANSI150

Face to facePN16/40 - EN558 series 27;
ANSI150 - ASME B16.10

BodyStainless stee 316, carbon steel

Ball/stemStainless stee 316

SeatPTFE+25% carbon. PTFE, TFM1600 on request

Valve topISO5211

RemarkFiresafe version available

两片式不锈钢法兰球阀
两片式不锈钢法兰球阀
两片式不锈钢法兰球阀
两片式不锈钢法兰球阀
设计特点
材料清单
尺寸规格

Fig.150 flanged ball valve is designed for stable and reliable operation in industrial piping systems.
The valve features a solid ball design for all sizes, ensuring consistent strength and sealing performance.
Multiple flange standards are available. Please note that the PN16/PN40 valves comply with EN 558 Series 27 in face-to-face dimension.

• Wax casting with excellent surface finish.

• Full bore for better Kv value.

• Anti-static devices for ball - stem - body.

• Solid ball for all sizes up to DN200.

• Blow-out proof stem.

• Pressure relief hole in ball slot.

• ISO5211 direct mounting pad for easy automation.

• Standard firesafe design; firesafe certified versions upon request.

DN15-DN100


DN125-DN200

*) Please contact Coreline for other materials.



DN15-DN100

*) DN15-DN50: PN16 and PN40 shares the same dimensions.


DN125-DN200
