ConnectionThread ends BSPP. Alternative NPT, BSPT
Size range1/4"-3"
Pressure rating1/4"-2" : PN63
2 1/2"-3" : PN40

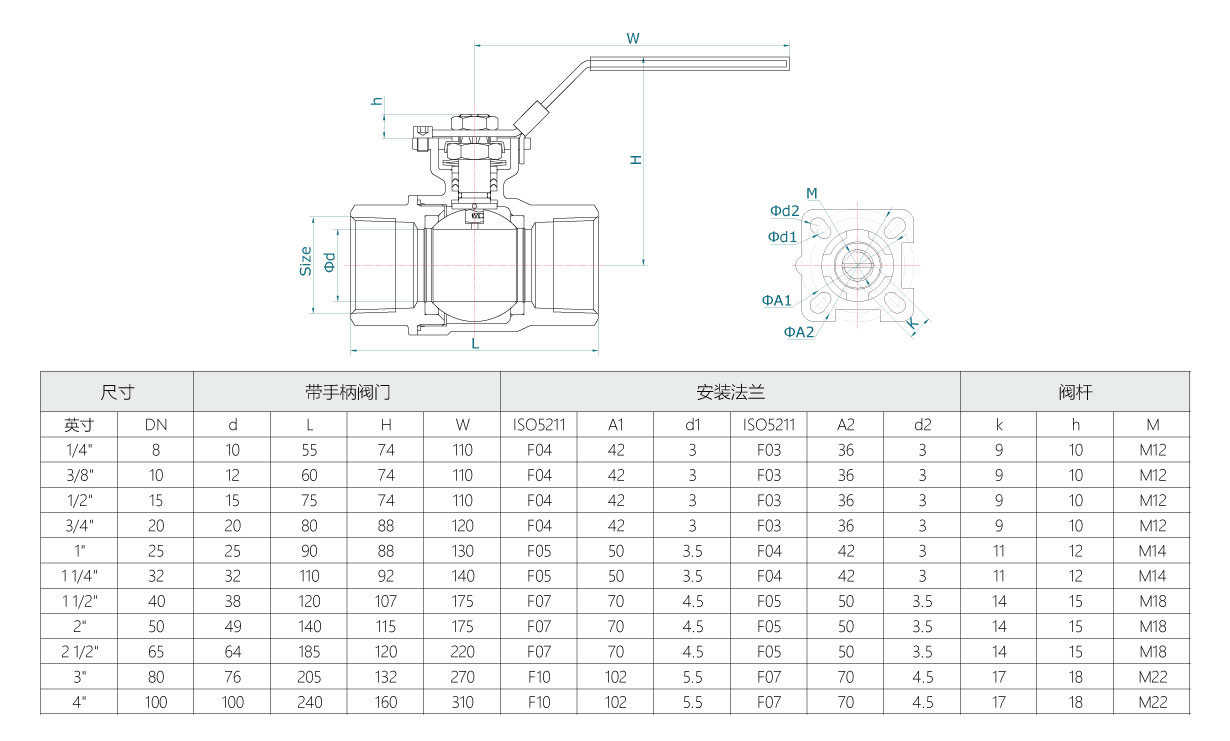

Face to faceDIN3202 M3

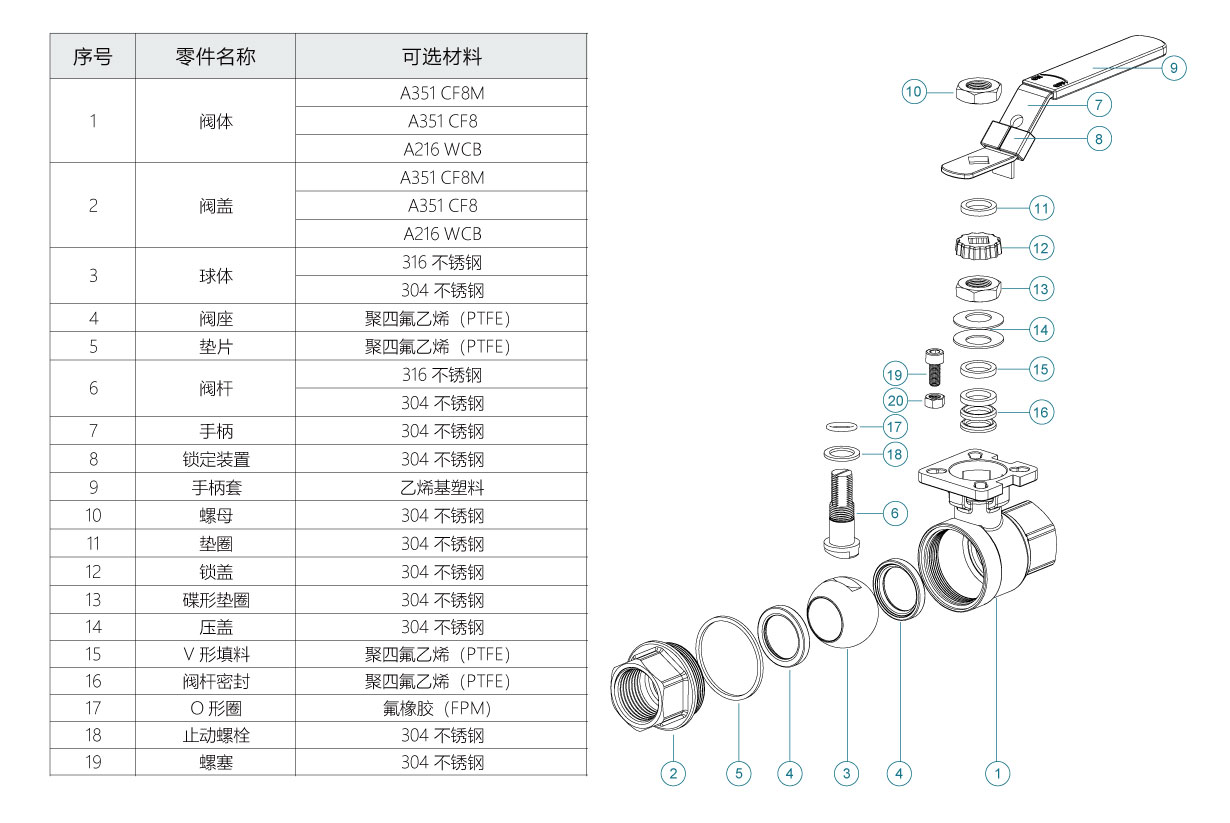

BodyStainless steel 316
SeatPTFE
PTFEL-hanle, with or without safety lock;
T-handle

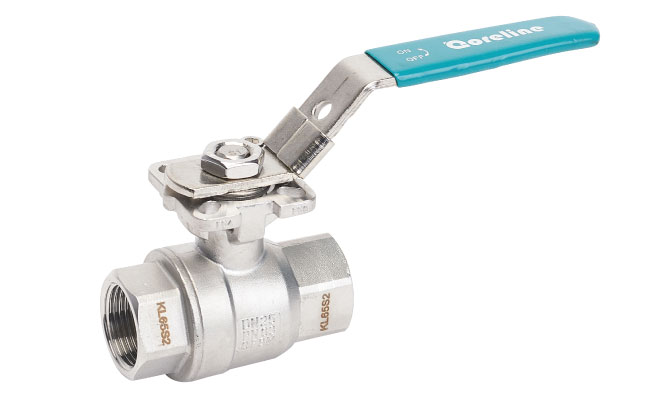

Fig.125 is a two-piece threaded ball valve designed for reliable shut-off in general industrial applications.
It features a standard M3 face-to-face dimension with extended effective thread length, ensuring secure connection and reliable installation.
The valve is equipped with an ISO 5211 direct mounting pad, allowing easy actuator installation for automation service.
• Face to face dimension confirms to DIN3202 M3.
• Full bore for better Kv value.
• Solid ball for high performance tasks.
• Anti-static devices for ball - stem - body.
• Blow-out proof stem.
• Pressure relief hole in ball slot.
• ISO5211 direct mounting pad for easy automation.
*) 1/4” and 3/8” share the same body pattern with 1/2”.
