ConnectionFlanged ends: DIN EN1092-1
Butt Weld ends: Standard ISO1127
Thread ends: Standard BSPP
Port3-way, 4-way; L port, T port, X port, I port
Size rangeDN15-DN100
Pressure ratingFlanged ends: PN40/PN16
Butt Weld/Thread ends: DN15-DN50 PN63
Top flangeISO5211
MaterialStainless steel 316/PTFE
TightnessANSI/FCI 70-2 - Class VI
ISO 5208 / EN 12266-1 - Rate A
API 598 - Bubble-tight

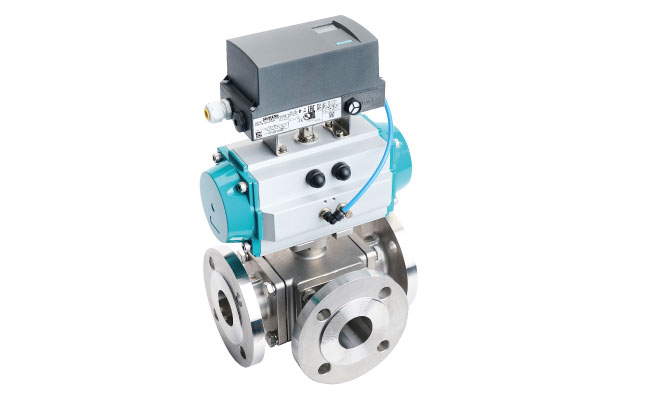

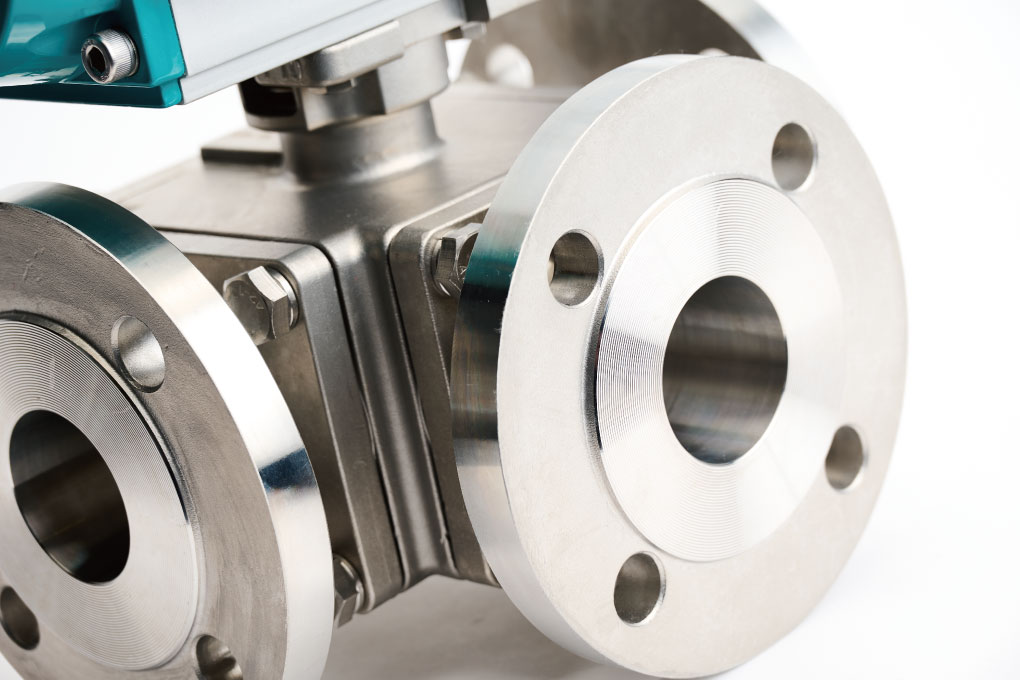

Fig.165 is a multi-port ball valve available in 3-way and 4-way, designed for flow diversion and mixing applications in industrial piping systems.
The valve is with full bore design, ensuring efficient flow capacity and minimal pressure loss.
Multiple connection options are available, including flanged, butt weld, and threaded ends, allowing flexibility in different piping standards and system requirements.
The valve allows flexible flow control between multiple ports and provides reliable shut-off performance.
Multi-port with full bore: 4 exchangable end caps providing a diverse selection of flow-patterns and different options of end connection.
4 seats design which allows input flow in all ends without the occurrence of bypass (leakage) behind the ball.
Traceability: heat numbers on main parts of each valve. Material certificate EN10204-3.1 can be delivered on request.
ISO 5211 top flange with square stem for direct mounting of actuator without using bracket or coupling.
TA-LUFT / ISO15848-1: fugitive emission test passed.
Traceability: heat numbers on main parts of each valve. Material certificate EN10204-3.1 can be delivered on request.
DN15-DN50
1) End caps can be exchangable between flanged type and butt welded type.
2) 4-way valve: change this part to be No. 2 end.
3) CF3M end cap is standard for a SS316 butt welded ball valve.
Please contact Coreline if other material is for request.
DN65-DN100 flanged type
1) 4-way valve: change this part to be No. 2 end cap.
Please contact Coreline if other material is for request.
