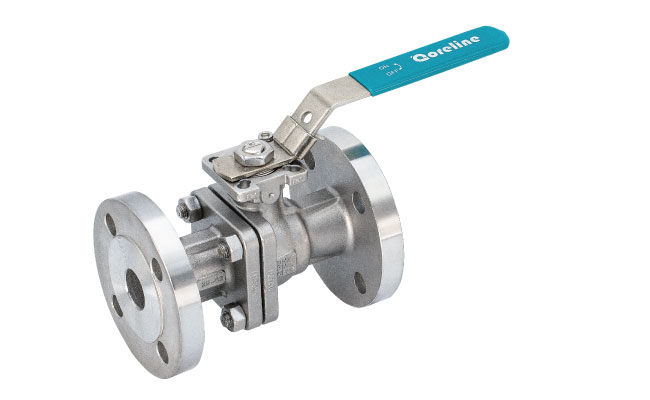

Fig.151
两片式加长型法兰球阀
基本信息

ConnectionPN16/40 - DIN EN1092-1

Size rangeDN15-DN150

Pressure ratingPN16/PN40

Face to faceDIN3202 F1 / BS EN558-1 R1

BodyStainless stee 316, carbon steel

Ball/stemStainless stee 316

SeatPTFE+25% carbon. PTFE, TFM1600 on request

Valve topISO5211

RemarkFiresafe version available

两片式加长型法兰球阀
两片式加长型法兰球阀
两片式加长型法兰球阀
两片式加长型法兰球阀
设计特点
材料清单
尺寸规格

Fig.151 is available only in PN16/PN40 with face-to-face dimensions in accordance with DIN 3202 F1 / EN 558-1 Series R1.
The valve is designed for stable and reliable operation in industrial piping systems.
It features a solid ball design for all sizes, ensuring consistent strength and sealing performance.

• Wax casting with excellent surface finish.

• Full bore for better Kv value.

• Anti-static devices for ball - stem - body.

• Solid ball for all sizes up to DN150.

• Blow-out proof stem.

• Pressure relief hole in ball slot.

• ISO5211 direct mounting pad for easy automation.

• Standard firesafe design; firesafe certified versions upon request.


1) Please contact Coreline for other materials.

2) For firesafe type: SS316+graphite for part 4 & 9, graphite for part 11.


1) Please contact Coreline for other materials.

2) For firesafe type: SS316+graphite for part 4 & 9, graphite for part 11.
