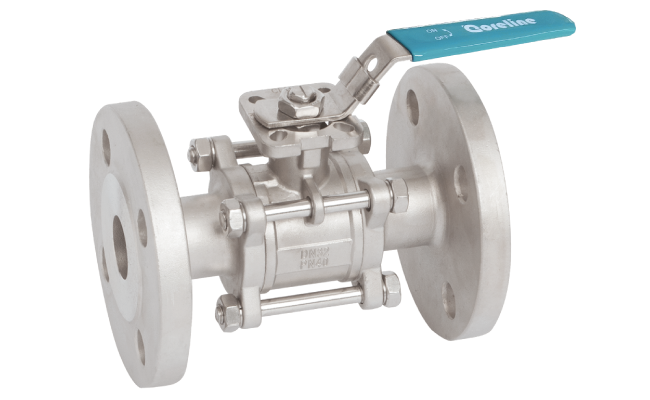

ConnectionThreaded, Butt welded, Socket welded, Flanged, Tri-clamp
Size range1/2"-4" (DN15-DN100)
Pressure ratingThread/BW ends: 1/2” - 2”: PN63; 2 1/2” - 4”: PN40
Flanged ends: PN40/PN16
MaterialsSS316 body / ball / stem; WCB body / SS316 ball & stem
SealingPTFE
Valve topISO 5211 direct mount top

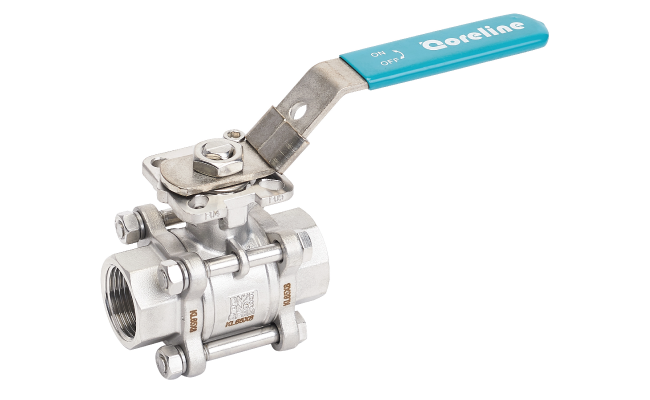

Fig.135 is a three-piece ball valve designed for reliable shut-off in general industrial applications.
The three-piece construction allows easy disassembly for inspection and maintenance, making the valve suitable for applications where regular servicing is required.
Wax casting with excellent surface finish.
Full bore for better Kv value.
Solid ball for high performance tasks.
Pressure relief hole in ball slot.
Anti-static devices for ball - stem - body.
Blow-out proof stem. • ISO5211 direct mounting pad for easy automation.
Thread and BW ends face to face dimension confirms to DIN3202 M3.
