Fig.614/615
薄片式止回阀
基本信息

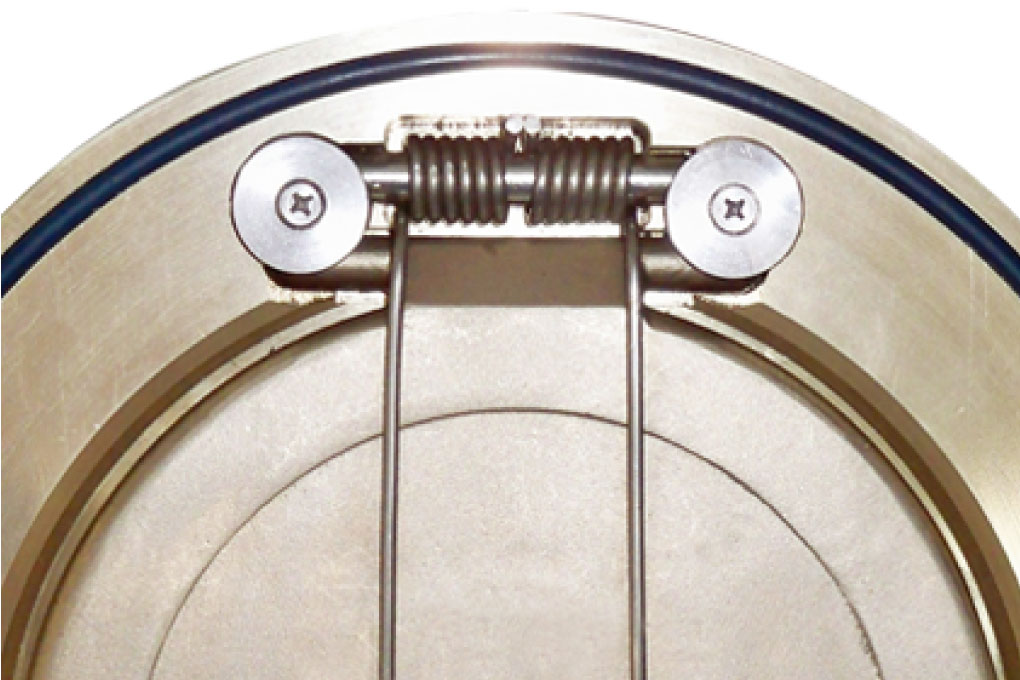

ConnectionWafer. Fig.614 without spring, Fig.615 with spring

Size rangeDN25 - DN1000

Pressure ratingPN10/16/25/40, Class150

Body/discCarbon steel, stainless steel, duplex steel, super duplex steel

SealingEPDM, NBR, FPM, PTFE, metal

Face to faceIndustrial standard

Tightness (soft seat)ANSI/FCI 70-2 - Class VI
ISO 5208 / EN 12266-1 - Rate A
API 598 - Bubble-tight

合规文件
N/A
3D
薄片式止回阀
薄片式止回阀
薄片式止回阀
薄片式止回阀
薄片式止回阀
薄片式止回阀
设计特点
材料清单
尺寸规格

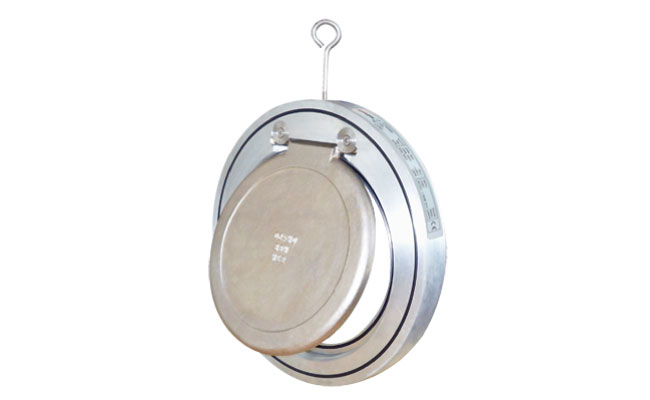

Fig.614/615 is a thin wafer check valve designed to prevent reverse flow in piping systems.

Its short face-to-face dimension allows compact installation, while precision machining ensures reliable sealing and low head loss.

The valve is suitable for both horizontal and vertical installation in a wide range of industrial applications.

  • High quality and reliability with certificate, robust construction and excellent finish.

  • Flexibility and low weight because of short face-to-face dimension.

  • Minimum head loss due to straight flow direction.

  • Resistance to aggressive media with many material options.

  • Self-centering over the outside diameter of body.

  • 1-pc body design makes it easy for recycling.

  • Different packing options, including life loaded.
