PrincipleRack and Pinion
MaterialExtruded aluminum alloy (6005-T5)
Operating temp–20°C ~ +80°C : Standard (NBR O-ring)
–40°C ~ +80°C : Low temperature (Silicone O-ring)
–20°C ~ +150°C : High temperature (FPM O-ring)
Air supply2.5bar - 8bar

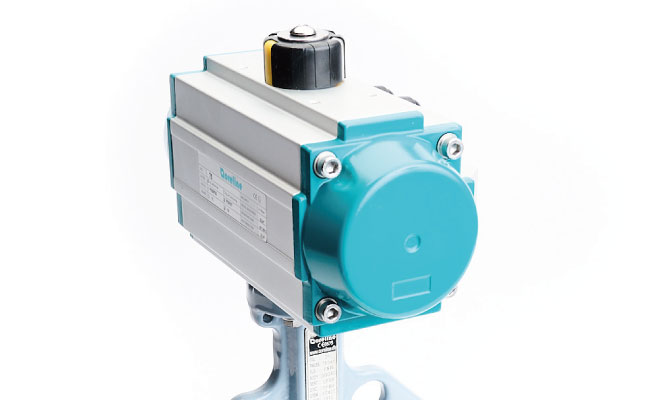

Coreline Fig.540/541 pneumatic actuators, have been designed and tested to obtain the highest cycling life and the most reliable performance with minimum maintenance and service.
Specifications of Coreline pneumatic actuators follow international standards convenient for faster mounting.
CE approval and ATEX certification provide guarantee for safety and reliability. A wide product range, permits a more economical sizing.
1. CE, ATEX and SIL3 approved.
2. ISO5211, VDE/VDI and NAMUR connection standards.

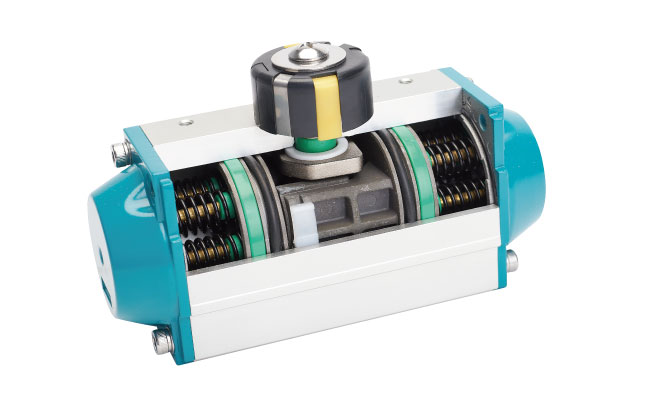

3. Pistons with patent: Twin rack pistons made from hard anodized die-casting aluminum. Balanced rack and pinion with full width pinion/piston engagement. Patented reinforced support on each side of teeth, provide strong solution with long cycle life and fast operation, with linear torque curve.
4. Visual indicator prepared for inductive sencor: Position indicator makes it easy to see position of valve and protect turning point against dirt and ambient. Fastened by stainless steel screw/washer. Built-in signal generator, prepared for inductive sencor.
