Fig.520/521/522
齿轮箱
基本信息

ConnectionISO5211

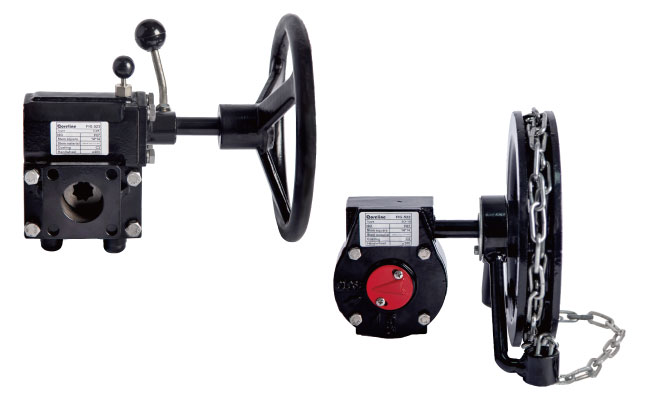

TypeFig.520 Aluminum gear box
Fig.521 Cast iron /CF8M gear box (Chain gear box available)
Fig.522 Clutch gear box

产品样册
IOM手册
合规文件
N/A
3D
齿轮箱
齿轮箱
齿轮箱
齿轮箱
设计特点
材料清单
尺寸规格

Coreline gear boxes are designed for manual operation and manual override of quarter-turn valves, such as butterfly and ball valves. With ISO 5211 mounting interface, they provide reliable torque transmission, smooth operation and stable valve positioning in industrial piping systems. Multiple configurations are available to suit different operating requirements and installation conditions.

Fig.520/521/522 | Gear Box

• Used for manual operation of 90° rotary valves such as butterfly and ball valves, or as a manual override between valve and actuator.
• Easy operation with high transmission efficiency and high output torque.
• ISO 5211 standard mounting flange, double-square or key connection available.
• Standard protection class IP65, higher protection class available on request.
• Locking device available on request.
