Applies toFig.450 Y-angle seat valve
Travel typeLinear motion
SwitchesMechnical switch 2×SPDT
Power supplyDC12V-48V
Valve mountingM26×1.5, M22×1.5, M16×1.5, M14×1, G1/4
Cable entryM16×1.5
LED indicator2-way: Green (Open), Red (Closed)

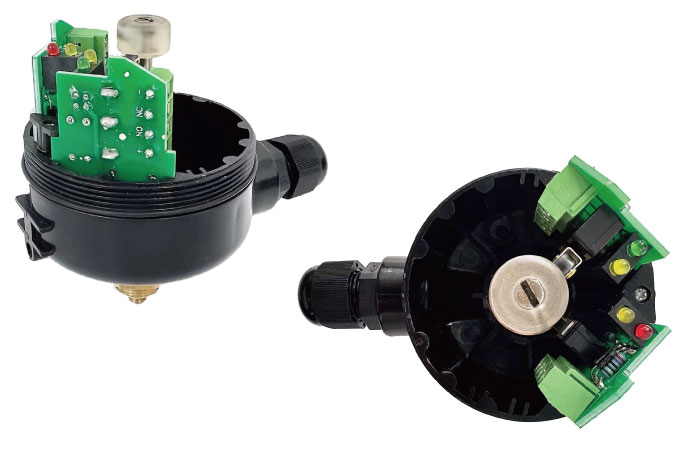

Compact electrical position feedback unit for angle seat valves, offering clear LED indication and reliable position feedback in demanding environments.
• Compact design; ideal for angle seat valves with linear motion.
• 360° adjustable and directly mounted on the valve.
• Green/Red LED for clear open/close position indication.
• Splash-proof, double-sealed housing to prevent water ingress.
Note:
(1) M26×1.5, M22×1.5, M16×1.5, and G1/4 mounting threads are available on request.
(2) Different actuator strokes require different feedback devices. Currently, Coreline only offers this feedback unit for spring return actuators.
